Poultry chicken house Scraper automatic manure removal machine for
sale

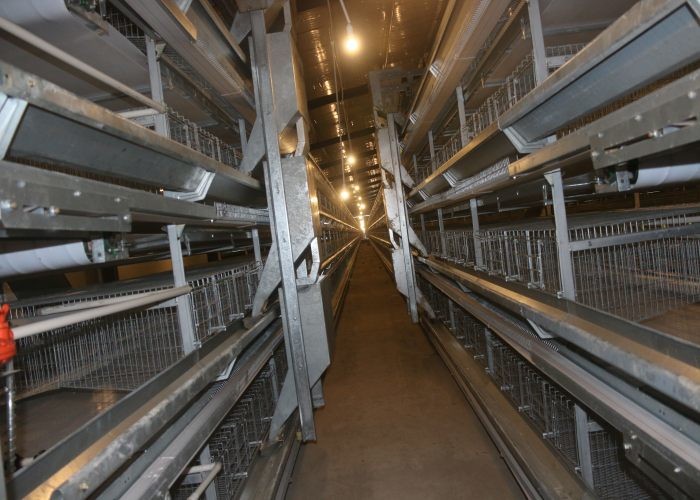

Ⅰ.Description of layer chicken cage
The Layer chicken cage system use hot galvanized system, corrosion
resistance, the use life is 15 to 20 years. It has A type layer
chicken breeding equipment and H type layer chicken breeding
equipment. Use advance ventilation system, lighting system and
automatic control system, save energy consumption. Improving labor
productivity, decrease the ratio of egg and feed. Using belt manure
removal system, make the chicken manure dry become granular, reduce
the environment pollution. The rate of chicken manure reuse
improved. It is the optimal eco-environment protection breeding
equipment for healthy layer chicken.
Ⅱ.Specification
| Product Name | H Type Chicken Layer Cages | Product Name | A Type Chicken Layer Cages |
| Material | Hot Dip galvanized | Material | Hot Dip galvanized |
| Tiers | 3/4/5/6/8 tiers | Tiers | 4 Tiers |
| Capacity | 144/192 /240 /288/384 | Capacity | 128 birds/160 birds per set |
| Size | 1800mm*600mm*430mm 1200mm*625mm*480mm | Size | 1950mm*350mm*380mm 1950mm*460mm*420mm |
| Area of per Chicken | 450cm2/470cm2 | Area of per Chicken | 450 cm2 |
| cage fram | U-shaped steel |
| cage mesh | Q 235 International standard steel |
| feeding system | automatic |
| manure system | automatic |
| Ventilation system | automatic |
| size | 1200*625*480mm/1800*600*430mm |
| surface treatment | Hot-galvanizing surface |
| warranty | 15-20 years |
| water system | automatic |
| weight | 54kg/72kg |
| Area of per chicken | 450-500 cm² |
Cage material
Surface of both cage wire and cage frame all hot galvanized bearing
ISO9001 quality certification, The surface galvanized cover of
these materials are equal to high standards. Our cage are designed
by our professional engineers for high efficient and more
convenient for operating, lifespan not be less 20 years.
Automatic drinking system
Drinking line is consisted of PVC material square or round shape
pipe, nipples which is made of plastic and stainless steel without
leakage. One water regulator is installed on each tier each row. It
supply the water from the water line to the pipe through reservoirs
with the proper pressure. The filters and the medicator to clean
the water and keep all chicken healthy.
Automatic Feeding system
Two different kind of feeding system: trolley feeding machine and
crane feeding machine. In this system, feed is distributed
automatically to the feed carts from the silo by spiral auger
located in a pipe with 90mm diameter. Augers made in South Africa
with best quality worldwide. Because of feed adjustment apparatus
which designed specially, feed distributed hygienically,
homogeneous, mixed and equally and saving feed cost.
Automatic manure removal system
Also two different kind of manure removal system: manure scraper
for A type cage and belt manure system for H type cage. Belt manure
system will makes your chicken house more clean, it is strong
design and high automatic operation. It installed under each tier
make smell very small and manure more dry.
