H type automatic poultry chicken cage breeding equipment conveyor
belt automatic manure removal equipment
Description of layer chicken cage
1. Raising egg-laying chicken, named layer cage, after pullet
growing up to 12 weeks to 16 weeks, it is near adult and starts
laying the egg, transfers to egg laying cage.
2. Rearing baby egg-laying chicken, named chick cage or baby
chicken cage, from 1 day old to 12 weeks, the feeding trough and
drinking line will adjust the height as baby chick cage.
3. Rearing broiler from 1 day old to 45 days after broilers ready
for market, named broiler cage, broilers will live in one cage of
whole life.
Check my product list to learn different kinds and size of the
chicken cage.
Specification
| Item | 3 tiers 4 doors | 3 tiers 5 doors | 4 tiers 4 doors | 4 tiers 5 doors |
| Capacity(Set) | 96 birds | 120 birds | 128 birds | 160 birds |
| Capacity(Cell) | 4 birds | 4 birds | 4 birds | 4 birds |
| Cage Size(L*W*H) | 1.8m*2.1m*1.5m | 1.95*2.1m*1.5m | 1.88m*2.3m*1.8m | 2.15m*2.3m*1.8m |
| Cell size(L*W*H) | 47cm*35cm*37cm *32 | 39cm*35cm*37cm*32 | 47cm*35cm*37*32cm | 43cm*35cm*37*32cm |
| Materials | Low carbon steel wire,Q235 steel wire |
| Surface | Cold Galvanization Hot Dip Galvanization |
Bottom wire mesh angle | 9° |
| Lifespan | Cold Galvanization (7-10 years) |
| Package | Full container loading:cage and cage frame are no package, |
DRINKING SYSTEM
1. There are 2 to 3 nipple drinkers for each two cage sections on
the PVC pipes which
are located between two cage sections. the “V” shape leakage gutter
underneath the water pipes, holds the water drops and prevent the
drops to the manure belt, therefore a drier manure is obtained.
2. A water regulator is located on each tier and each row of the
cage, It supply the water from the water line to the pipes.
AUTOMATIC FEEDING SYSTEM
1.It is the feeding system with feed carts. Our feeding system with
feed carts which enable adjust to make feed distributed
hygienically, homogeneous, mixed and equally.
2. In this system, feed is distributed automatically to the feed
carts from the feed silos by the spiral augers located in a pipe
with90-150 mm diameter.
3. Feed carts are moved by steel cables and 0,751.50 HP(according
to the chicken house length and hopper) electric gear motors over
the rails that are located on the top of the cages.
AUTOMATIC EGG COLLECTION SYSTEM
1. Automatic egg collection unit made of galvanized sheet and
apparatus produced by our advanced own production machines,the egg
bands and lift engine powers are 0.75 -1.50 HP.
2. The egg bands made of import cloth and the joint components made
of plastic sheets

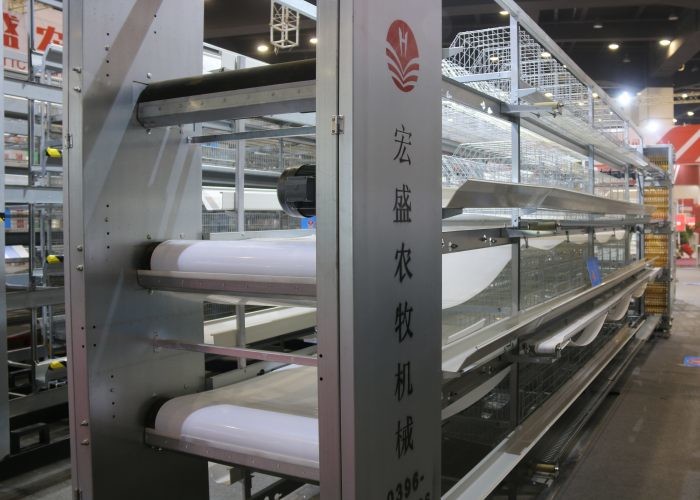

MANURE REMOVAL SYSTEM
1.Manure is cleaned and discharged by the Polypropylene (PP) manure
belts of 1.10 mm thickness.
These PP belts are located under each tier and row of the cages and
towed by drive reducer
engines to clean the manure in a flawless way.
2.The manure belt is made of white PP product which made in Italy.
The belt
system is consisting of front cap rollers stretching and internal
scrapping off apparatus as well as the rear scrapping off
rollers,pressing balls, external scrapping off apparatus, conveyor
drive systems and the electrical reducer engines.
